Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit

Name: Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Brand: Sinopharm Kangshun Dental（Guangdong）Co., Ltd
SKU: BY-412
Price: 60.00 USD
Availability: InStock

Brand Name:	FHJS
Model Number:	BY-412
MOQ:	1 Kit
Price:	USD 20~100
Delivery Time:	2-8 working days after receiving payments
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Type:

Low Speed Handpiece

Model:

BY-412 External Cooling Advanced

Spray:

External Single Spray

Working Db:

≤65dB

Material:

AL7075

Usage:

Use To Stable Series Low Speed Handpiece

Body Temperature:

≤20°C

Water Flow:

≥70ml/min

Packaging Details:

box, 1 SET/BOX, Carton (including 1 piece of contra-angled handpiece, 1 piece of straight handpiece, 1 piece of motor)

Supply Ability:

50 Kits per day

Highlight:

Ball-Bearing Dental Low Speed Handpiece

Contra-Angled Dental Low Speed Handpiece

Product Description

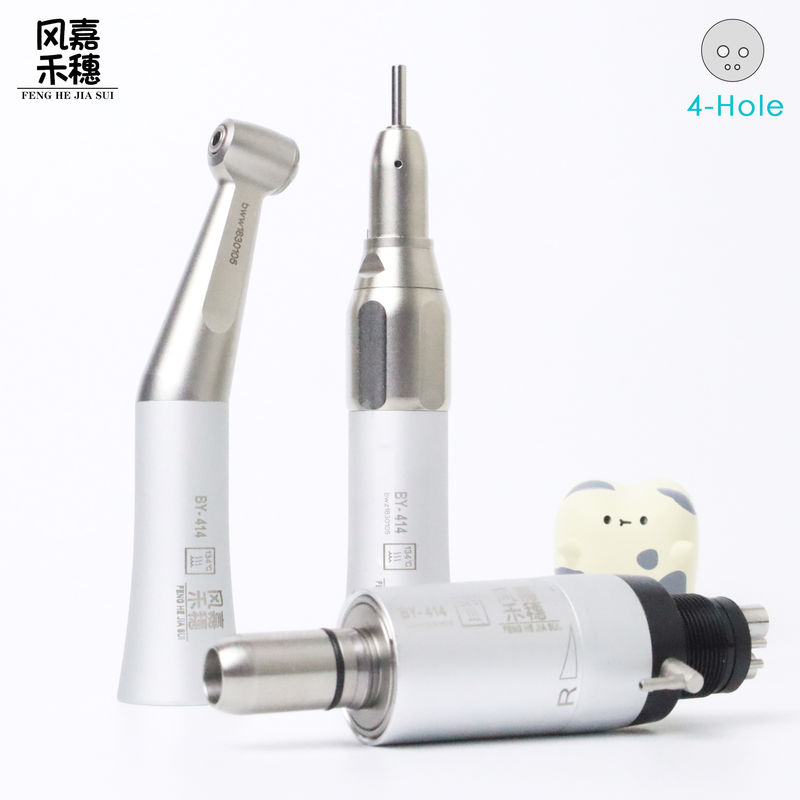

Dental Low Speed Handpiece 1:1 Contra-Angled External Precision Ball-Bearing Kit

Component Specifications

Contra-Angles :

Aerospace Bearings: ABEC-7 ceramic ball bearings with <0.8μm runout (ISO 19499 certified)
Ergonomic Balance: 0.15mm center-of-gravity offset reduces operator fatigue by 45% in 2-hour procedures

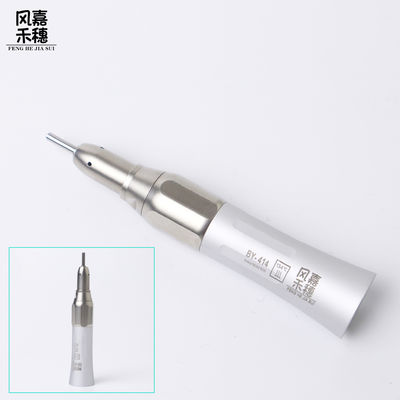

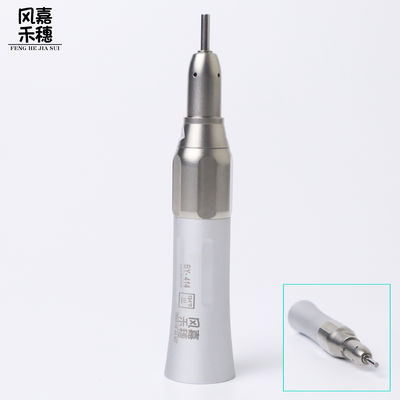

Straight Handpieces :

Medical-Grade Titanium Chuck: Compatible with 1.6/2.3mm burs (18N±0.5N clamping force)
Anti-Slip Texture: Laser-engraved diamond pattern improves wet-grip friction by 60%

Motors :

Smart Speed Control: 0-40,000 RPM stepless adjustment with 0.4s acceleration time
Overheat Protection: Automatic RPM reduction at 65°C, emergency shutdown at 80°C

Clinical Applications:

✓ Precision Inlay Prep: 0.8mm mini-head enables Class II cavity preparation with external water cooling

✓ Periodontal Surgery: Dedicated straight handpiece with bone trimming burs maintains <42°C operative temperature

✓ Mobile Clinics: Motor's wide voltage input (12-36V) adapts to portable generators.

Specification:

Color	Silver
Drive Air Pressure	0.25~0.35MPa
Water pressure	0.1~0.2Mpa
Rotation speed	20000 RPM
Cooling method	Water cooling, air cooling
Noise	<68dB
Chuck type of Contra-Angled handpiece	Push button
Chuck type of Straight handpiece	Turn chuck
BearingC	Ceramic Ball Bearing
Connection of micormotor	M4 B2 2-Hole or 4-Hole
Material	AL7075 surface sandblasting and electroplating.
Disinfection	Withstand 135°C sterilization
Warranty	18 Months
Light	Non Optic

Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit 0
